Pixel Pitch: 3.81mm /5.33mm /6.67mm /8mm /10mm

FA Series

  • Panel Material: iron
  • Cabinet Size: 960*960*115mm(customizable)
  • Saving 40% Energy

Features

Parameters

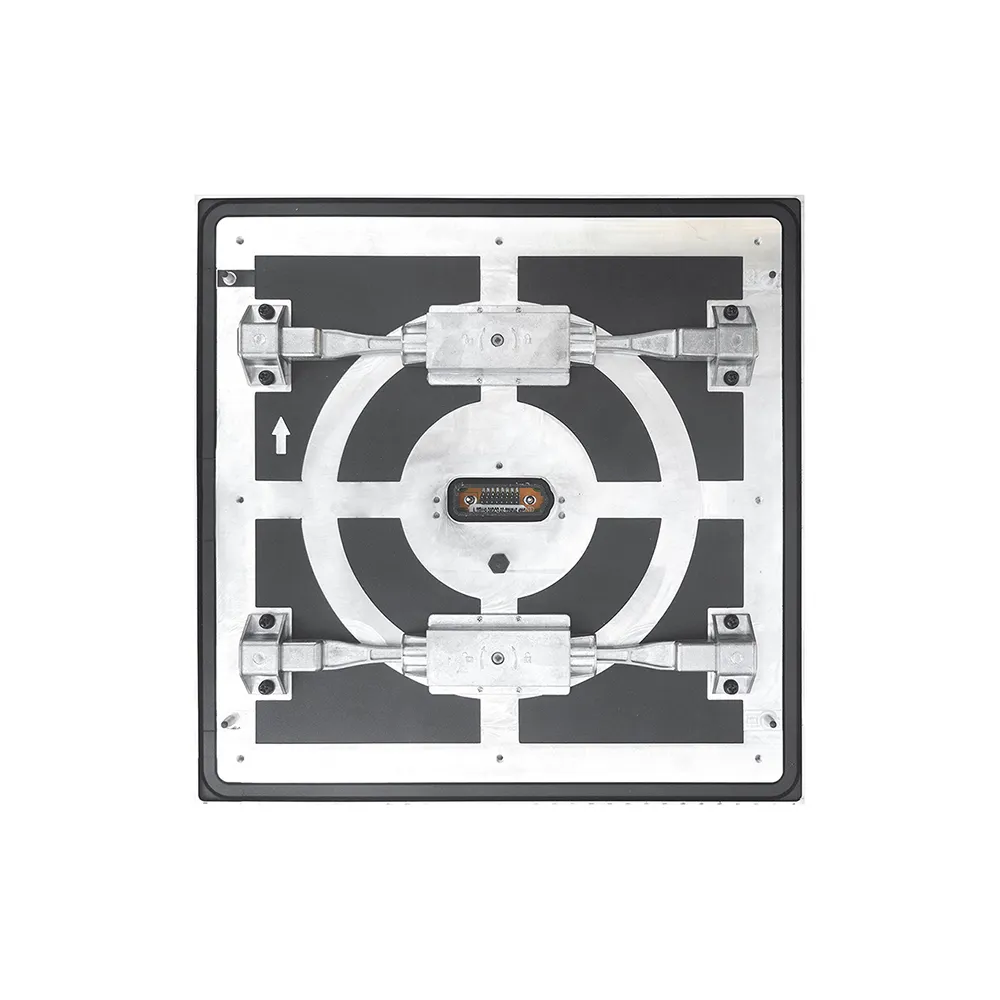

Die-cast aluminum module

No deformation, fast heat dissipation, high temperature resistance, Front and Rear Maintenance

Fireproof

Advantages of Aluminum Modules in High Temperature Environments

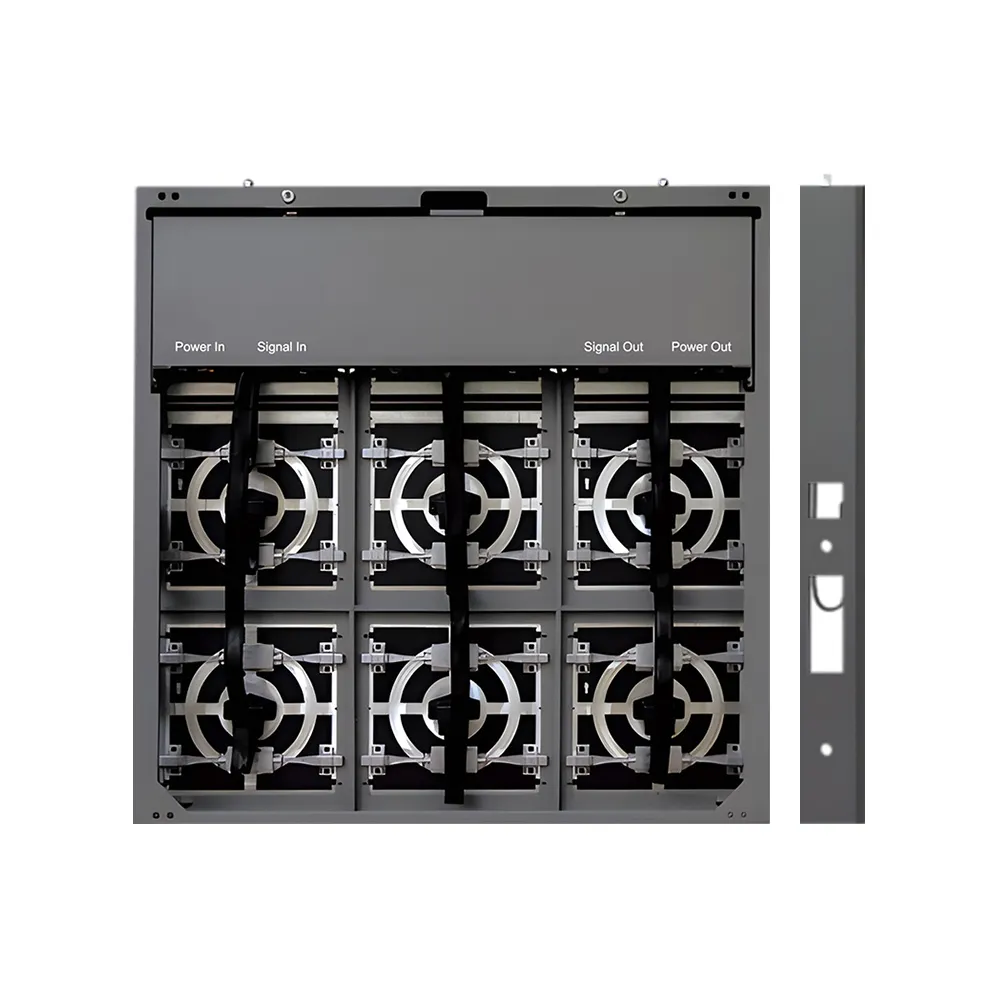

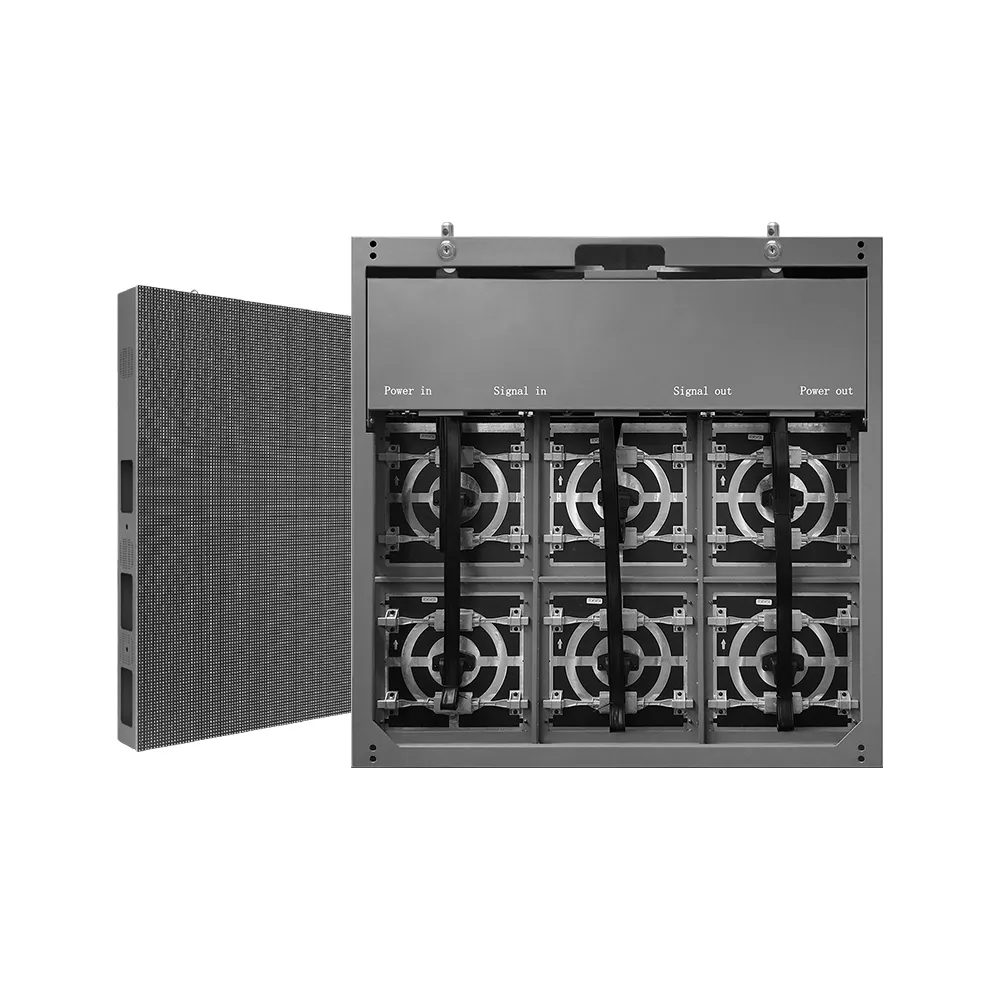

Front & Rear Maintenance

FA series supports front & rear installation and maintenance, flexible installation and use.

Superior waterproof

Withstands any weather and environment with IP65 protection

Wide range of applications

Stable protection in extreme environment

Outstanding effect of display

Up to 10,000 nits high brightness, even in strong sunlight, this outdoor LED display board still achieves the ultimate display effect.

Application Solutions

Ruiling FA series can be applied as the advertising LED display screen used at outdoor places: malls, sports venues, road instructions, events display solutions, and more.

Seafront
Shopping Mall
Sports
Corporate

Product Parameters

ModelFA3.81FA5.33FA6.67FA8FA10
Pixel CompositionSMD 1921SMD 1921SMD 2727SMD 2727SMD 2727
Pixel Density 68906dots/m²35156dots/m²22500dots/m²15625dots/m²10000dots/m²
Module Size320*320*14.5mm320*320*14.5mm320*320*14.5mm320*320*14.5mm320*320*14.5mm
Cabinet Size960*960*115mm960*960*115mm960*960*115mm960*960*115mm960*960*115mm
Cabinet MaterialIronIronIronIronIron
Cabinet Weight35kg35kg35kg35kg35kg
IP RatingIP65IP65IP65IP65IP65
Calibrated Brightness≥5000nits≥5000nits≥5000nits≥5000nits≥6000nits
Color Processor(bit)1416161616
Maximum Power550W/m²550W/m²550W/m²550W/m²550W/m²
Average Power186W/m²186W/m²186W/m²186W/m²186W/m²
IC Driving(s)1/141/61/61/51/2
Refreshing Ratio≥3840Hz≥3840Hz≥3840Hz≥3840Hz≥3840Hz
Maintenance MethodFront/RearFront/RearFront/RearFront/RearFront/Rear
Operating EnvironmentTemperature： -20℃－50 ℃/ Humidity：10% – 90% RH
Temperature： -20℃－50 ℃/ Humidity：10% – 90% RH
Temperature： -20℃－50 ℃/ Humidity：10% – 90% RH
Temperature： -20℃－50 ℃/ Humidity：10% – 90% RH
Temperature： -20℃－50 ℃/ Humidity：10% – 90% RH
